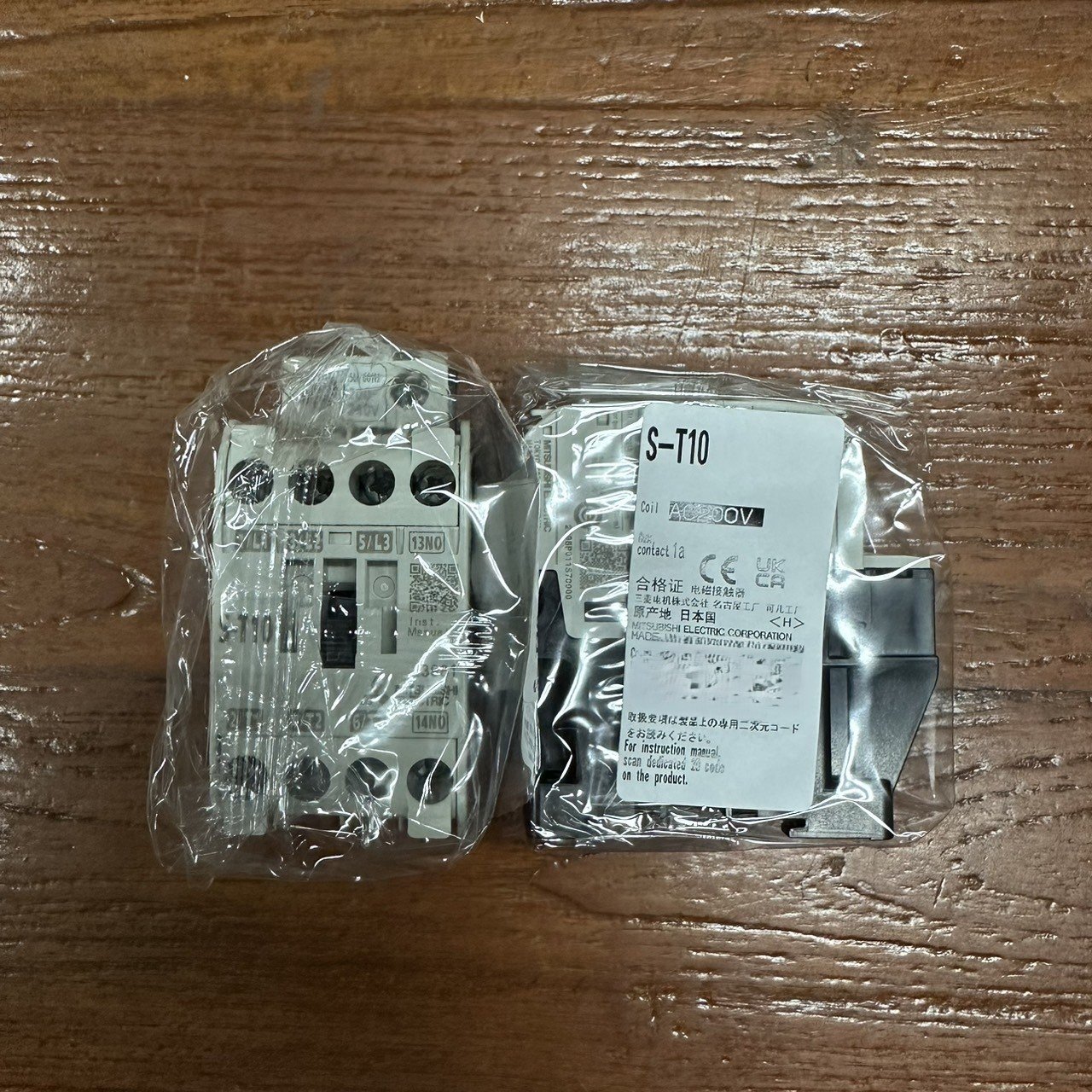

Mitsubishi Electric S-T10 AC200V Magnetic Contactor — 3-Pole, 9A, 1 NO Auxiliary Contact

The S-T10 is a compact AC-operated magnetic contactor from Mitsubishi Electric's MS-T Series, designed for reliable motor starting, stopping, and switching in industrial and commercial electrical panels.

■ Key Specifications
• Model: S-T10
• Coil voltage: AC 200–240V, 50/60 Hz
• Rated operating current: 9A (AC220–240V, Category AC-3 global)
• Motor rating: 2.5 kW @ 220–240V | 4 kW @ 380–440V
• Thermal current Ith: 20A (free air)
• Rated insulation voltage Ui: 690V
• Main contact: 3-pole, 3 NO
• Auxiliary contact: 1 NO (normally open)
• Coil inrush: 45 VA | Sealed: 7 VA | Power: 2.2 W
• Mounting: DIN rail or screw mount
• Terminal screw: M3.5 (all circuits)
• Mechanical durability: 1,000 million operations
• Electrical durability: 200 million operations (AC-3)
• Switching frequency: up to 1,800 times/hour
• Width: 36 mm

■ Features
• Finger-safe screw-clamp terminals with protective covers
• Space-saving 36 mm width for compact panel layouts
• Suitable for both DIN rail and surface (screw) mounting
• Compliant with IEC, JIS, and UL standards
• Genuine Mitsubishi Electric MS-T Series quality

■ Typical Applications
• 3-phase and single-phase motor control (pumps, fans, conveyors)
• Motor control centers (MCC) and distribution panels
• Switchboards and industrial automation systems
• HVAC and building management equipment

Genuine product. In stock in Thailand. Fast shipping nationwide.
